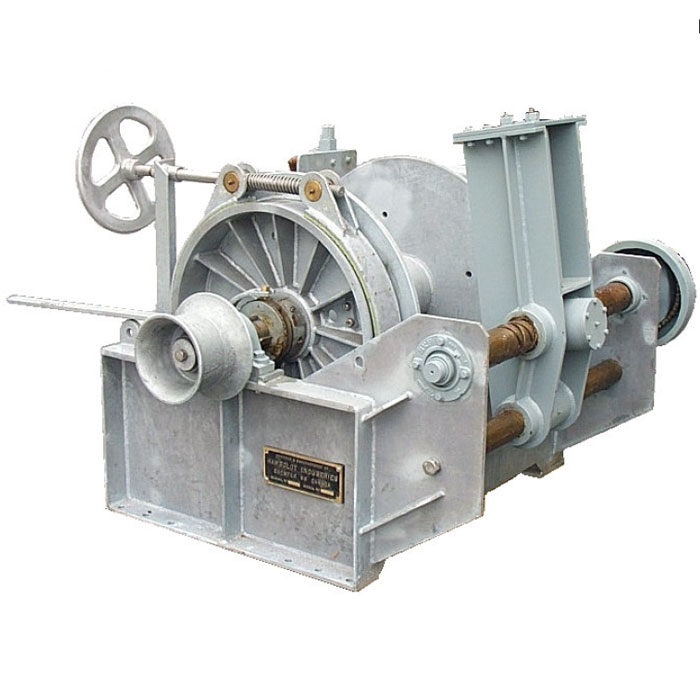

Split Frame Winch – HSF-34

Features:

  • Totally enclosed oil bath drive
  • Choice of geroller or radial piston motor
  • Oversized heavy duty manual band brake
  • Machined 3-jaw dog clutch
  • Rolling element bearings
  • Standard epoxy marine finish

Options:

  • Hot dip galvanize finish
  • Mounted & prepiped controls
  • Warping head
  • Diamond screw levelwind

Specifications:

  • Bare Drum: 15,000 lbs. @ 100 ft/min
  • Full Drum: 4,280 lbs. @ 350 ft/min
  • Drum Size: 8-5/8” dia. Barrel, 34” dia. flanges x 14” to 22” wide
  • Hydraulic Requirements: 35 GPM @ 2,700 PSI

Split Frame Winch HSF34 Specs
