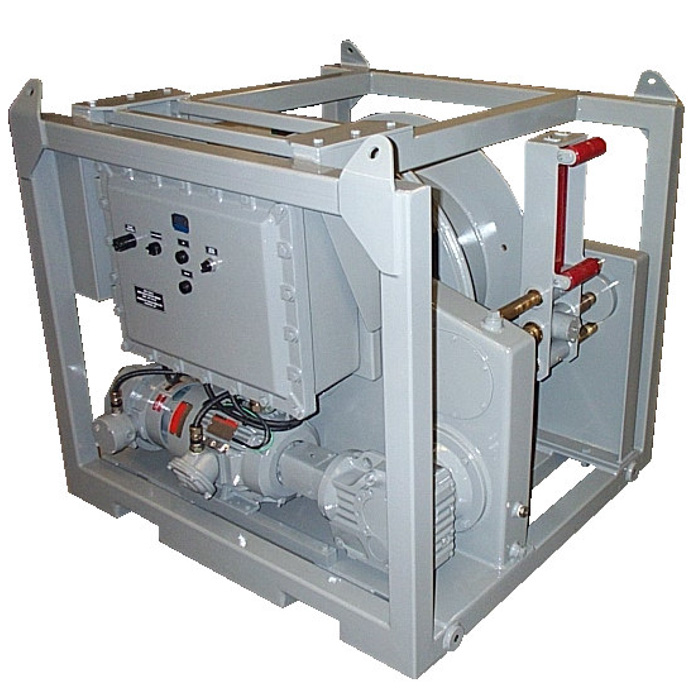

Slip Ring Winch – SPR-1238/S Features Specs Photos Downloads Inquiry Features: Helical bevel gearbox 40.04:1 reduction Heavy duty roller chain 3:1 final drive in oil bath Explosion Proof Brake Motor – 3 hp, 440V, 3 phase, 60 Hz Variable speed frequency drive with power in/power out control Spring applied, fail-safe brake rated for 200% load Class 1, Div. 1, Group D, Inverter Duty, UL Approved, ABS Approved Hollow stub shaft to accept Focal Model 180 slip ring Automatic diamond screw levelwind Surround frame and fork lift pockets Approximate Weight (without cable): 3200 lbs Specifications: Bare Drum: 800 lbs. @ 15 - 89 ft/min (363 kg. @ 5 - 27 m/min) Full Drum: 596 lbs. @ 20 - 120 ft/min (270 kg. @ 6 - 37 m/min) Capacity: 500 ft. of 0.90" dia. EM cable (152 m of 22.9 mm) Drum Size: 24” dia. barrel, 38” dia. flanges x 12” wide Electric: 3 H.P. Slip Ring Winch SPR-1238/S PDF 1 file(s) 310.42 KB Download Your name Subject Company Address Address 2 City State / Province Your Email Phone (No parenthesis or hyphens.) Your message (optional)
