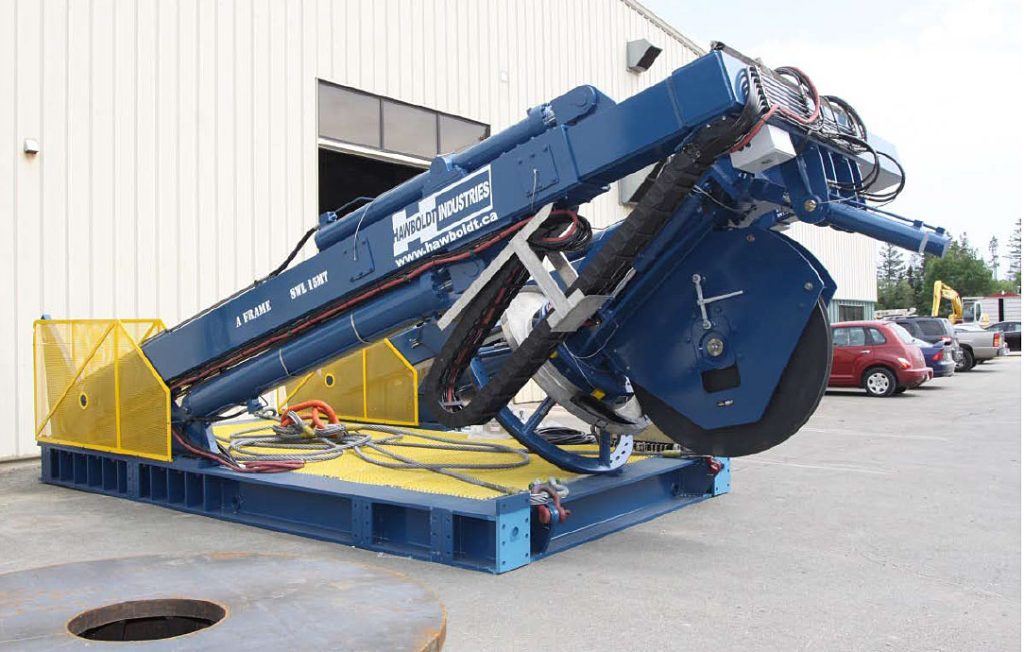

Hawboldt Industries designs and builds stern A-Frames for marine Launch and Recovery Systems (LARS), enabling safe, efficient handling of ROVs, AUVs, sonar arrays, and oceanographic gear.

Features:
• 15 metric tonne Safe Working Load
• Hydraulic actuation of main boom, extension boom, swing, tilt and rotation of ROV docking ring
• Cold temperature steel, box beam continuous weld construction
• 60” sheave exceeds minimum bend radius of umbilical cable
• Designed, manufactured and tested for Certification of DnV 2.22 Offshore Lifting Appliance standard
• All hydraulic valving and controls mounted on base

Options:
• Remote control operation
• Sheave can be configured for a variety of cable sizes
• Lifting Slings

Specifications:

  • Lifting Capacity: 15 mT Safe Working load
  • Hydraulic Requirements: 24 GPM @ 2700 PSI
  • Capacity Dimensions: 110in W x 145in H
  • Overall Dimensions: 455" L x 160in 317in" H
  • Weight: 62,000 lbs

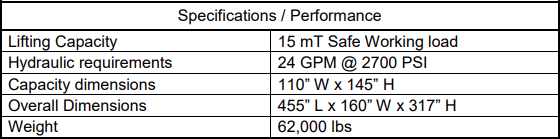

Stern A-Fram Spec Chart

15 mT ROV-LARS
