Anchor Windlass Model: AWHV-16-WH

Features:

  • Handwheel applied / released drum band brake
  • Planetary drive with failsafe brake
  • Heavy duty manual band brake and clutch
  • Warping head
  • Designed and certified to Lloyd’s guidelines
  • Single lever control valve

Options:

  • Dual wildcats and warping heads
  • Warping head
  • Electric drive motor

Specifications:

  • Brake Capacity: 15,200 lbs. (6,900 kg.)
  • Wildcat Pull: 3,600 lbs. @ 30 ft/min (1,636 kg. @ 9 m/min)
  • Warping Head Pull: 2,200 lbs. @ 34 ft/min (1,000 kg. @ 10 m/min)
  • Chain Size: 16 mm stud link
  • Clutch: Manual Jaw Clutch

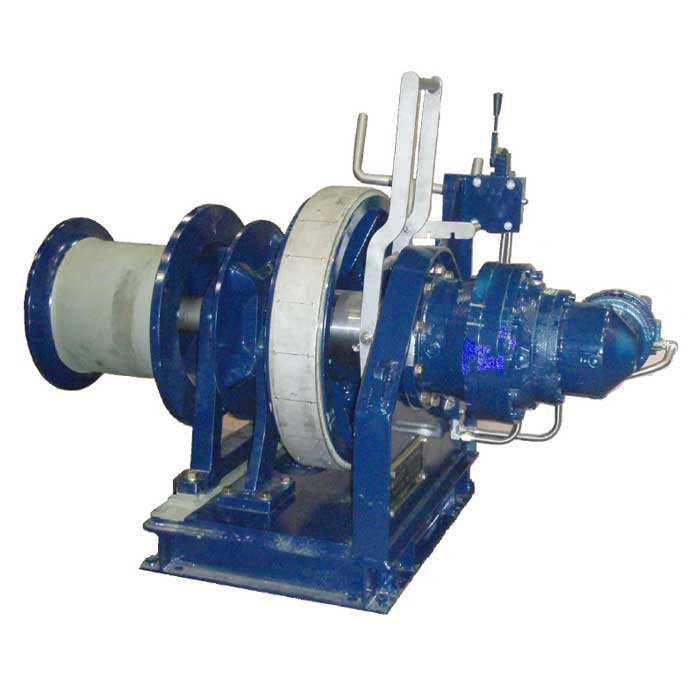

Anchor Windlass AWHV-14-WH
