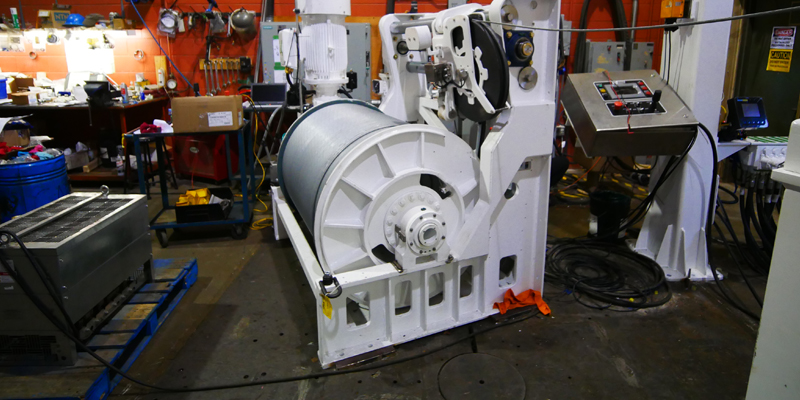

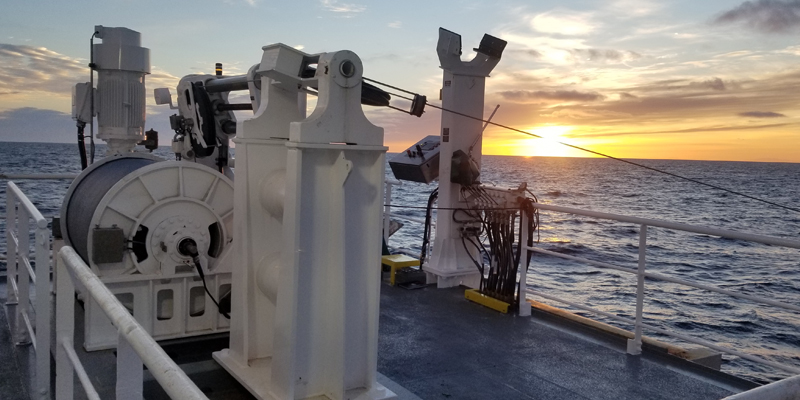

OS-42OS-42
OS-42OS-42

Features:

  • Inline or right angle level-wind
  • Electric (includes VFD) or hydraulic (includes Directional Control Valve) power input
  • Local electronic control panel
  • Compact and modular Engineered frame
  • Large drum diameter ensures a long cable life
  • Hawboldt’s proprietary EZ-Spool control system
  • Integrated dual axis load pin

Options

  • Fairlead Roller Box with instrumented sheave
  • Grooved Shell
  • Wired or Wireless Belly-Pack
  • Active Heave Compensation
  • Focal 180 Slip Ring
  • Industrial VPN Router
  • Air-conditioning Unit
  • Hawboldt’s Proprietary Pro-Spool Control System
  • Rotary Slewing Ring
  • Cable Wash Down Sprayer

Specifications:

Winch Power Requirements

  • Electric – 440VAC/3PH/60Hz – 60 HP
  • Hydraulic Supply – 3600 psi @ 36 GPM

Winch Data

  • Maximum Bare Drum Pull: 11,000 lbs @ 180 ft/min
    (5,000 kg @ 55 m/min)
