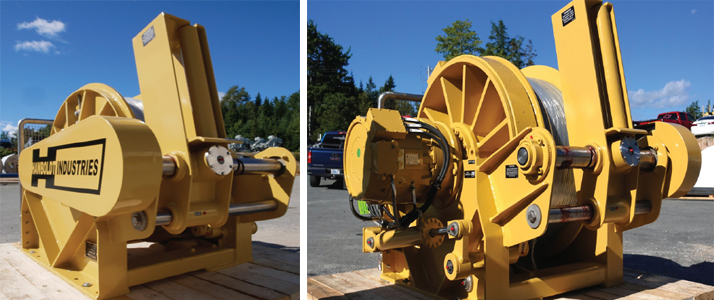

The EGD-1648/S Trawl Winches are available as a handed pair of direct driven electric trawl winches.

They feature a hydraulically actuated fail-safe band brake for towing and a variable frequency drive controlled permanent magnet motor that allows power regeneration when shooting.

The levelwind is a chain driven diamond screw mechanism with a custom grooved shell for optimal spooling.

FEATURES

  • Fully variable speed and direction control
  • Chain driven diamond screw levelwind
  • Hydraulically actuated fail-safe band brake
  • All steel, continuous weld construction
  • Liquid cooled permanent magnet motor
  • Variable frequency motor drive

Specifications:

  • Weight (Without Wire Rope): 7,000 lbs.
  • Bare Drum Pull: 25,500 lbs @ 100 ft/min
  • Mid Drum Pull: 14,580 lbs @ 175 ft/min
  • Full drum Pull: 9,939 lbs @ 257 ft/min
  • Weight (with Wire Rope): 9.800 lbs
  • Drum Capacity: 1,300 m of 5/8” 6X19 EIPS Wire Rope
  • Bare Drum Diameter: 15.75 inches
  • Flange Diameter: 48 inches
  • Distance Between Flanges: 16 inches
  • Brake Hold Capacity: 40,800 lbs (1.6x Bare Drum Pull)
  • Hydraulic Requirement: 3 GPM @ 300 PSI
  • Electric Requirement: 1000 VDC + 208 VAC/60 HZ/1 PH
